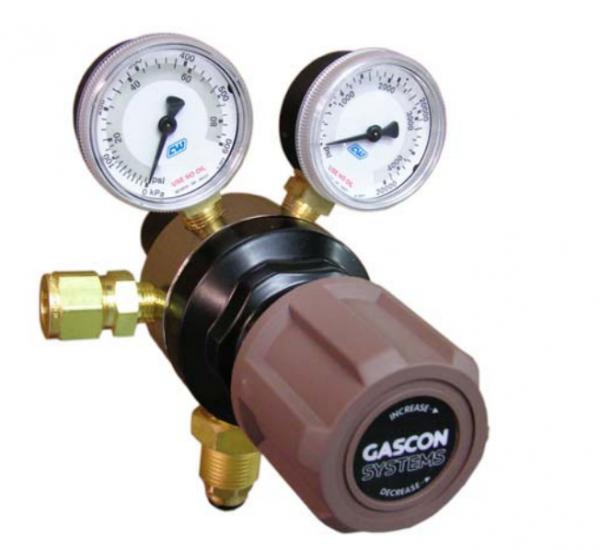

The C750 is a range of general purpose industrial dual stage regulators designed for applications requiring a constant outlet pressure across the full variation of cylinder inlet pressures.
A wide range of different outlet pressures, inlet fittings, and outlet fittings are available. A selection of diaphragm materials is available to ensure compatibility with the gas and the type of application required.
- Bar stock brass body
- Pressure relief valve on first stage regulator
- Maximum outlet pressure adjusting stop
- Colour coded control knobs
- Australian made
Specifications:
| Max. Inlet Pressure: | 20,000 kPa @ 15°C (31,500 kPa optional) |
| Outlet Pressures: | 0 – 1,200 kPa |
| Gauges: | 50mm diameter brass |
| Body Ports: | ¼” NPT (F) |
| Weight: | 2.4 kg |
Materials:
| Body: | Chrome plated brass bar stock |
| Bonnet: | Powder coated zinc diecast |
| Seat: | PCTFE & Viton (Nitrile & EDPM Optional) |
| Filter: | 63 micron cupro nickel |
| Diaphragm: | Neoprene; EDPM; or PTFE coated neoprene |
