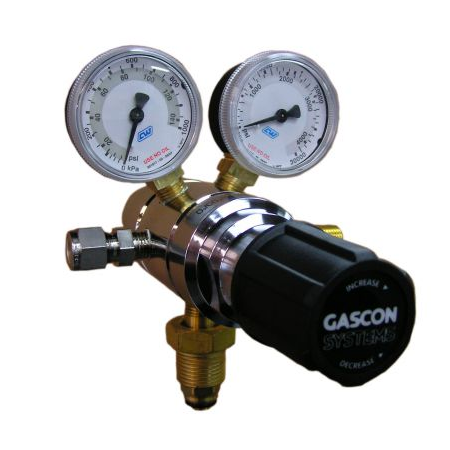

The Gascon Systems range of dual stage regulators are manufactured from brass bar stock and are recommended for
use in non-corrosive gas applications. Versions are available for industrial, laboratory, medical and scientific grade gases.
Wide range of options including; inlet connection orientations, inlet fittings (eg. AS, CGA, BS, DIN, AFNOR), diaphragm materials, outlet pressure ranges, ventable pressure relief valves, preset outlet pressure models, different seat configurations for different flow/pressure characteristics, and panel mount kits.
- Encapsulated seat assembly with built-in filter
- Bar Stock body
- Maximum outlet pressure adjusting stop
- Colour coded control knobs
- Australian made
Specifications:
| Max. Inlet Pressure: | 20,000 kPa @ 15°C (31,500 kPa optional) |
| Outlet Pressures: | 0 – 5,000 kPa |
| Gauges: | 50mm diameter brass |
| Body Ports: | ¼” NPT (F) |
| Weight: | 2.1 kg |
Materials:
| Body: | Chrome plated brass bar stock |
| Bonnet: | Chrome plated brass |
| Seat: | PCTFE or PTFE |
| Filter: | 63 micron cupro nickel |
| Diaphragm: | Neoprene; EDPM; PTFE coated neoprene; or 316L stainless steel |
