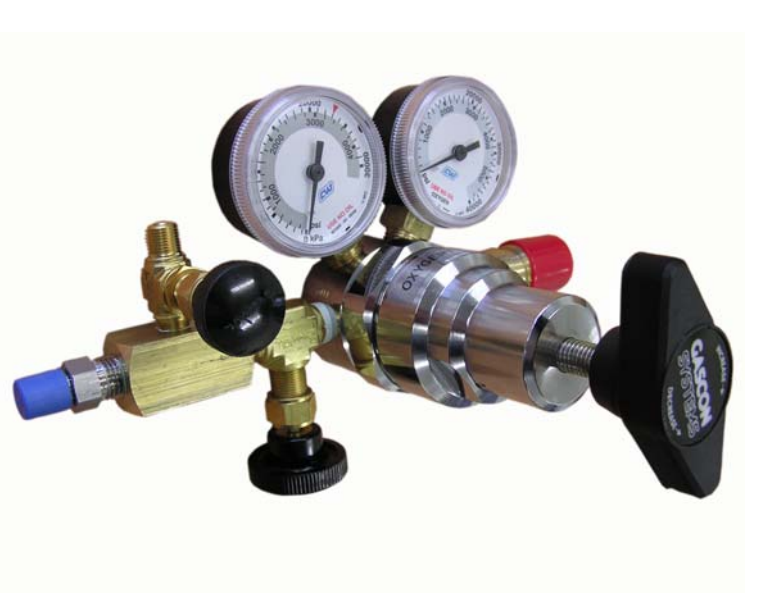

The Gascon Systems single stage charging regulators are manufactured from brass bar stock and are designed for charging aircraft tyres and struts. Typically the regulators we offer are adjustable up to 20,000 kPa and come complete with a charging & bleed down valve. They are also fitted with a restrictor to limit the flowrate for prevention of ignitions.
Different versions of this regulator are available, so please contact Gascon Systems and we can manufacture a product to suit the specific customer requirements.
- Encapsulated seat assembly with built-in filter
- Bar Stock body
- Maximum outlet pressure adjusting stop
- Colour coded control knobs
- Australian made
Specifications:
| Max. Inlet Pressure: | According to Inlet Fitting
Type 10 is 200 Bar @ 15°C Type 50 is 200 Bar @ 15°C Type 60 is 200 Bar @ 15°C Type 11 is 250 Bar @ 15°C Type 51 is 315 Bar @ 15°C Type 61 is 315 Bar @ 15°C |
| Outlet Pressures: | Adjustable 0 – 20,000 kPa |
| Gauges: | 50mm diameter brass |
| Body Ports: | ¼” NPT (F) |
| Weight: | 1.8 kg |
Materials:
| Body: | Chrome plated brass bar stock |
| Bonnet: | Chrome plated brass |
| Valves: | Brass |
| Seat: | PCTFE |
| Filter: | 34 micron cupro nickel |
| Diaphragm: | Neoprene |
