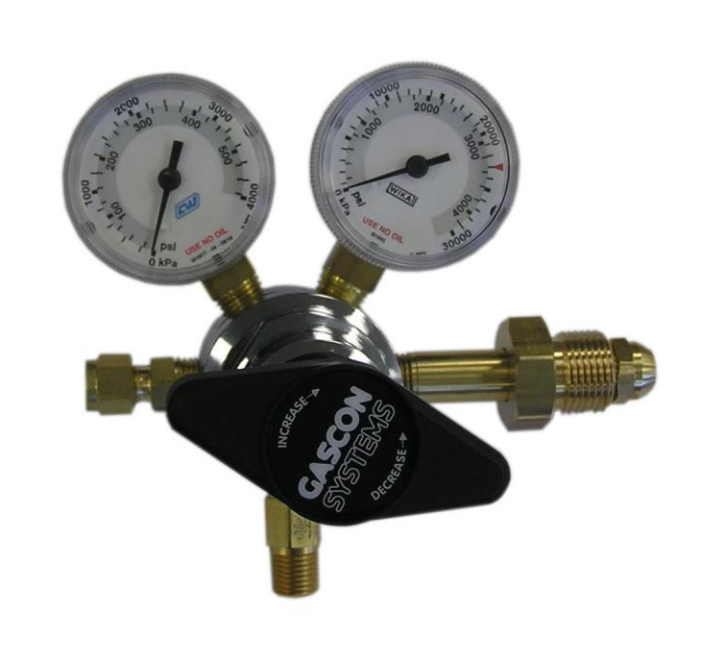

The Gascon Systems extra high outlet pressure regulators are manufactured from brass bar stock and are recommended for use in non-corrosive gas applications. They are ideally suited for industrial work, pneumatic loading of test apparatus, static testing of pressure components, pressurising high pressure systems or high pressure decanting.
You can choose from side or vertical inlet connection orientations, inlet fittings for 200 Bar or 300 Bar cylinders , and various pressure relief valves if required. Outlet pressures can be requested anywhere in the range of 3,000 to 20,000 kPa maximum outlet.
- Encapsulated seat assembly with built-in filter
- Bar Stock body
- Maximum outlet pressure adjusting stop
- Colour coded control knobs
- Australian made
Specifications:
| Max. Inlet Pressure: | 20,000 kPa @ 15°C (31,500 kPa optional) |
| Outlet Pressures: | 1,000 – 20,000 kPa |
| Gauges: | 50mm diameter brass |
| Body Ports: | ¼” NPT (F) |
| Weight: | 1.4 kg |
Materials:
| Body: | Chrome plated brass bar stock |
| Bonnet: | Chrome plated brass |
| Seat: | KEL-F |
| Filter: | 63 micron cupro nickel |
| Diaphragm: | Neoprene |
