The S632 range of manifolds is an industrial gas supply system for installations requiring uninterrupted high flows of gas at constant pressure.

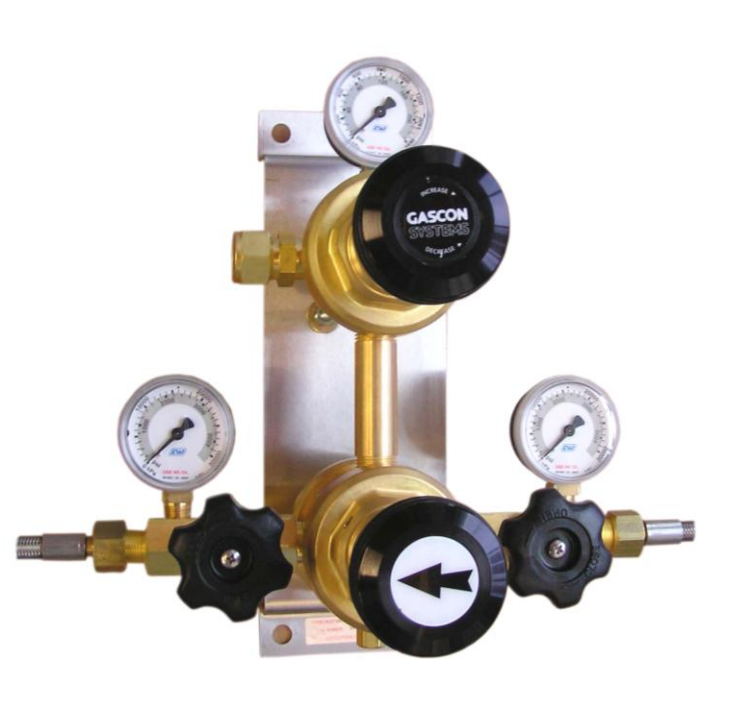

The manifold consists of two banks of cylinders, one on each side of the pressure control assembly. The position of the selector knob determines which bank of cylinders is “in use” and which is “in reserve”. The manifold draws gas from the “in use” cylinder bank until it is emptied, the manifold then automatically starts drawing gas from the “in reserve” cylinder bank.
- Easy to use bank selection knob
- Inlet gauges indicating supply in gas cylinder pressures at all times
- High-pressure isolation valve on each supply bank
- Pipeline pressure gauge
- Outlet connection on both RHS and LHS
- Pressure relief valve on primary regulators
- Modular inlet header system for expansion of cylinder banks
Specifications:
| Max. Inlet Pressure: | 20,000 kPa @ 15˚ C
(31,500 kPa optional) |
| Max. Outlet Pressure: | up to 15,000 kPa |
| Inlet Ports: | 3/8” BSP RH for non-fuel gases
3/8” BSP LH for fuel gases |
| Outlet Port: | ½” NPT Female |
| Weight: | 10 kg |
Materials:
| Body: | Brass |
| Control Knobs: | Flame retardant Nylon, (isolation valves)
Aluminium, (regulators) |
| Seats: | PCTFE, (regulators)
Nylon (isolation valve, monel for oxygen) |
| Mounting Bracket: | Stainless Steel |
