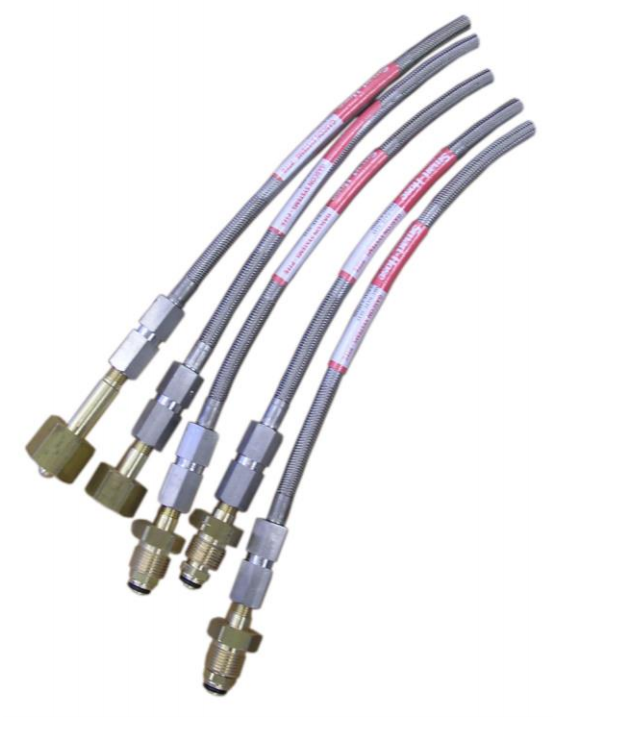

High-pressure flexible cylinder leads are intended to connect industrial gas cylinders, or packs of cylinders to a supply point of gas pipeline systems, (eg high-pressure point valves, manual manifolds or auto change-over manifolds).
Instead of having an external “anti-whip” cable, these leads have an internal safety cable that in the event of a failure, the cable activates internal shut-off valves. Not only does the internal shut-off valves prevent whipping of a failed lead, but they also prevent the gas from being released to the atmosphere from the cylinder or from the downstream pipeline system. Preventing accident release of gas can important when working with flammable, asphyxiant, oxidizing, or toxic gases, or when cylinders are located in confined or poorly ventilated areas. Failure of leads can be caused by accidental damage to cylinders, falling cylinders, “drive-offs” without disconnecting leads from manpacks, or by long term wear and tear.
- Individually serial numbered
- 100% production tested
- Label with intended working gas, date of manufacture, date of last test
Specifications:
| Max working: | 20,000 kPa @ 15°C #1 |
| Pressure (MWP): | 31,500 kPa @ 15°C #1 |
| Inlet Fitting: | Gas specific according to AS2473.2
or other international cylinder valve Standards |
| Outlet Fitting: | 3/8” BSP nut/nipple
RH for non-flammable gases LH for flammable gases other fittings available on request |
| Minimum Burst Pressure: | 4 times MWP |
| Standard Length: | 800mm and 1800mm (other lengths available) |
| Weight: | 0.3kg |
Materials:
| End Fittings: | Brass or stainless steel |
| Lead Liner: | Post sintered virgin Teflon,
Tefzel or convoluted stainless steel |
| Outer Braiding: | Stainless Steel |
| Internal Cable: | Stainless Steel |
